Home Products B72207S250K101 (S07K25) Epcos MOV
B72207S250K101 (also
B72207S250K101 (also
COD not available
MetalOxideVaristor by EPCOS / TDK

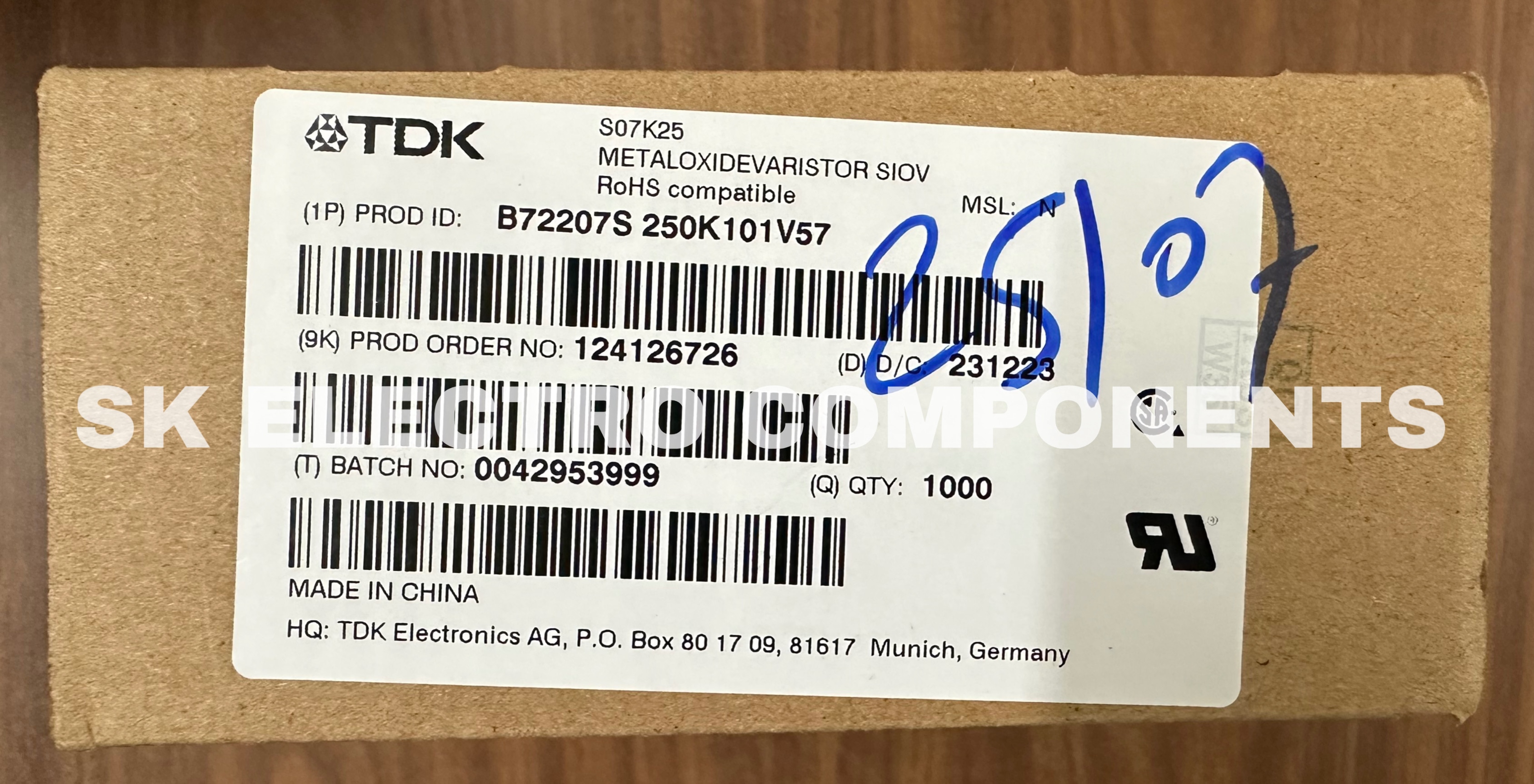

B72207S250K101 (S07K25) Epcos MOV

Share with
Share this on :

Description

Product details

B72207S250K101 (also cataloged as B72207S0250K101) is a Metal Oxide Varistor (MOV) manufactured by TDK Electronics (formerly EPCOS). It is a leaded disk-style voltage protection component primarily used for overvoltage and surge suppression in electronic circuits. Technical Specifications • Varistor Voltage: 39 V • Max. Operating Voltage: 25 VAC (RMS) / 31 VDC • Max. Surge Current (8/20 µs): 250 A • Disk Diameter / Size: 7 mm • Mounting Type: Through Hole (Radial leads) • Tolerance: ±10% Physical Dimensions • Lead Spacing: 5.0 mm • Max Body Width: 9.0 mm • Max Body Height: 11.0 mm • Max Body Thickness: 3.7 mm

  • Filter tags

Other Components

Related Components

The B72207S140K101 is a 7 mm disc-type metal-oxide varistor (MOV) manufactured by TDK (EPCOS) designed for overvoltage protection and transient suppression in electronic circuits. Key Specifications • Manufacturer: EPCOS / TDK (Part Number: B72207S0250K101) • Type: Radial Through-Hole Technology (THT) Metal-Oxide Varistor • Maximum AC Operating Voltage ((V_{RMS})): 25 V • Maximum DC Operating Voltage ((V_{DC})): 31 V • Varistor Voltage ((V_{v})): 39 V (± 10%) • Disc Diameter: 7 mm (nominal / ~9 mm outer package) • Maximum Surge Current: 250 A (or up to standard S07 series ratings)
View Details
B72207S140K101 (S07K14) EPCOS MOV
Part No: 1N4007 M7 Manufacturer: HORNBY ELECTRONIC CO. LTD Voltage – DC Reverse (Vr) (Max): 1000 V Current – Average Rectified (Io): 1A Voltage – Forward (Vf) (Max) @ If: 1.1 V @ 1 A Speed: Standard Recovery >500ns, > 200mA (Io) Current – Reverse Leakage @ Vr: 5 µA @ 1000 V Capacitance @ Vr, F: 15pF @ 0V, 1MHz Operating Temperature – Junction: -55°C to +150°CPackage/Case: DO-214AC
View Details
M7 SMD Diode
The B32529C1104J189 is a 0.1 µF metallized polyester film capacitor made by TDK (EPCOS). It features a 100 VDC voltage rating, 5% capacitance tolerance, and a compact radial stacked design. Key SpecificationsCapacitance: 0.1 µF (100 nF) Voltage Rating: 100 VDC / 63 VAC Tolerance: ±5% (J) Dielectric Material: Metallized Polyester (PET / MKT) Lead Spacing: 5.0 mm Dimensions: 7.3 mm length × 2.5 mm width × 6.5 mm height Operating Temperature: -55°C to +125°C
View Details
B32529C1104 (0.1 mfd/100v) Film capacitor
