Home Products 65-12-1CE OEN Relay
COD not available
by OEN

65-12-1CE OEN Relay

Share with
Share this on :

Description

Product details

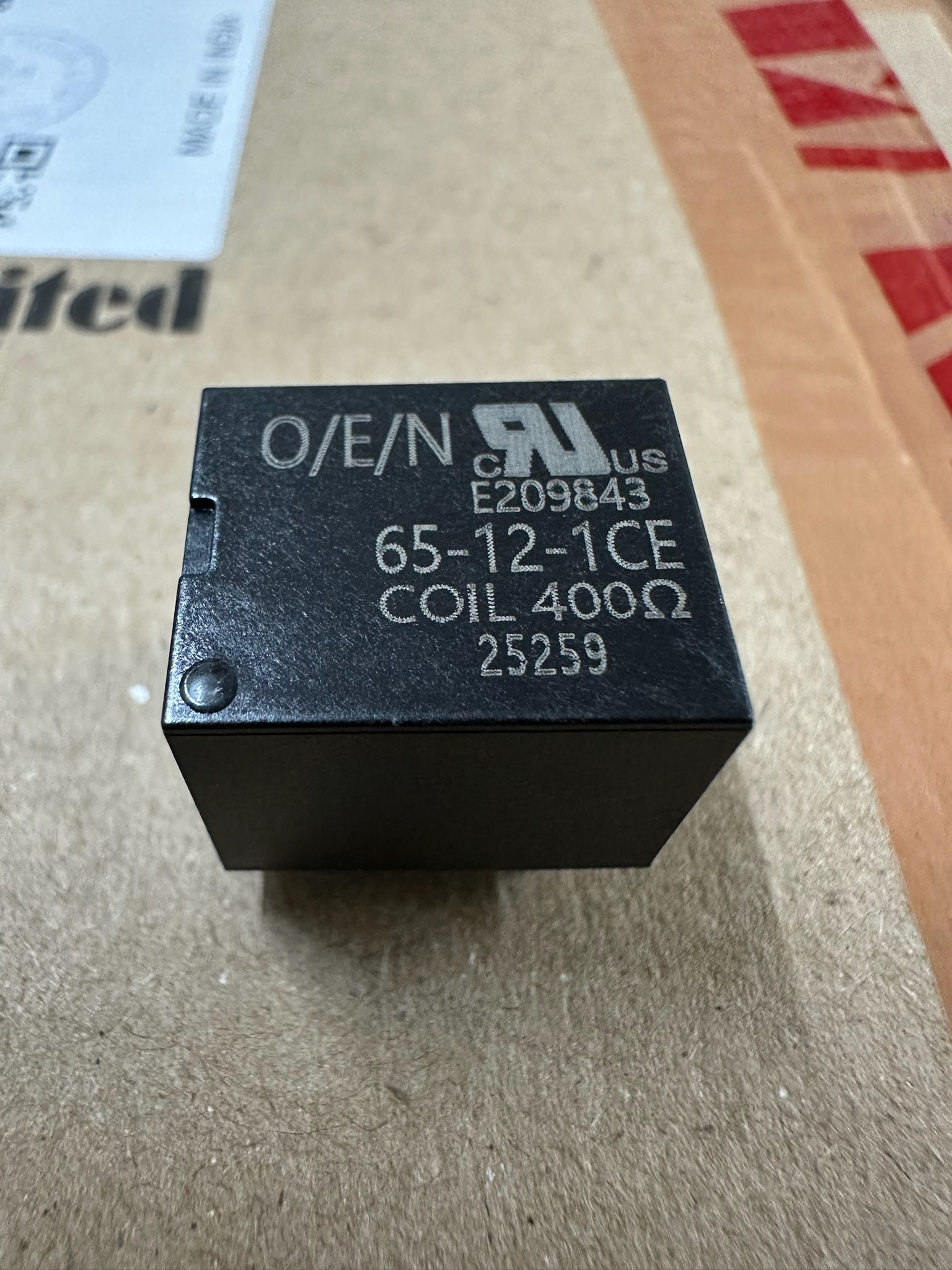

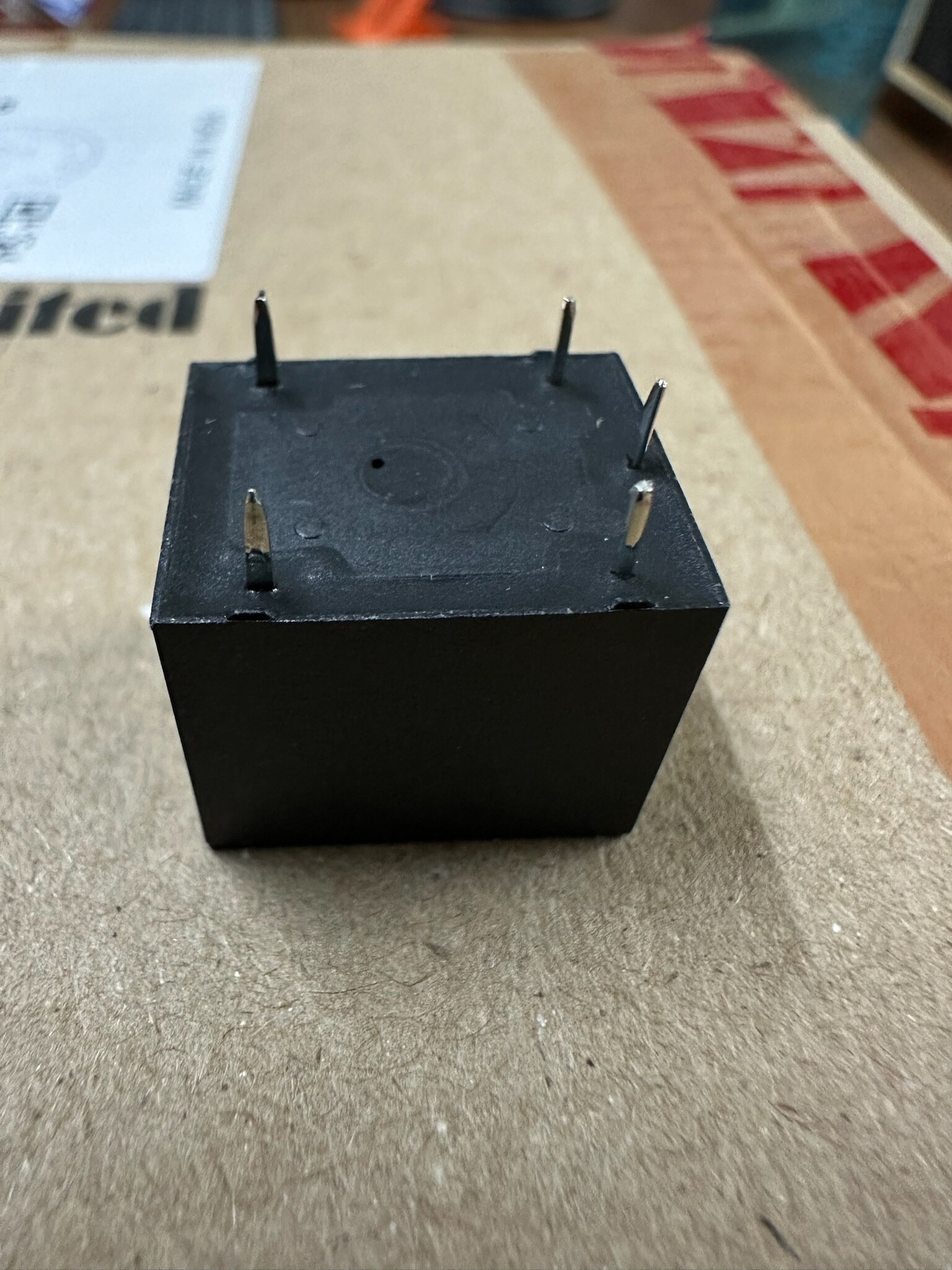

The OEN 65-12-1CE is a sub-miniature power relay designed for PCB mounting, commonly used for high-density mounting in industrial and automotive applications. It operates on 12V DC, with a 10A max switching current (7A continuous). It features a 1-form C (SPDT) contact arrangement and is recognized for its compact, robust design, often used in automotive control systems, home lighting, and industrial automation. Key Specifications & Features: Operating Voltage: 12V DC Contact Arrangement: 1 Form C (SPDT - Single Pole Double Throw) Max Switching Current: 10A (up to 7A continuous) Max Switching Voltage: 230 VAC / 24 VDC (up to 250V DC) Power Consumption: 0.36 W (nominal) / 0.23 W (operating) Contact Material: Silver alloy Operating Temperature: -45 to +55 Mounting: PCB Mounting

  • Filter tags

Other Components

Related Components

The AT89C2051 is a low-voltage, high-performance 8-bit CMOS microcontroller with 2K bytes of Flash memory, compatible with the industry-standard 8051 instruction set. Designed by Atmel (now Microchip Technology), this 20-pin microcontroller features 128 bytes of RAM, 15 programmable I/O lines, two 16-bit timers, and 6 interrupt sources, making it a cost-effective solution for compact embedded applications. Key Features and Specifications: Core: 8051 Compatible Instruction Set.Memory: 2K Bytes Flash (10,000 Write/Erase cycles) + 128 Bytes RAM. I/O Pins: 15 Programmable I/O Lines.Clock: 0 Hz to 24 MHz Operating Range. Timers: Two 16-bit Timer/Counters.Interfaces: UART Serial Channel, Analog Comparator. Operating Voltage: 2.7V to 6.0V.Package: 20-pin DIP (PDIP) or SOIC (SMD). Special Features: Direct LED drive outputs, Low-power Idle/Power-down modes, Two-level program memory lock.
View Details
AT89C2051-24PU Microcontroller Atmel
The 74HC138D is a high-speed Si-gate CMOS 3-to-8 line decoder/demultiplexer, designed for decoding 3 binary address inputs into 8 mutually exclusive active-LOW outputs. It features three enable pins (two active-LOW, one active-HIGH) for easy expansion, operates between 2.0V and 6.0V, and is commonly used for memory chip selection. Function: 3-to-8 line decoding or 1-to-8 demultiplexing. Outputs: Active-LOW (outputs are normally HIGH unless selected). Supply Voltage ((V_{CC})): 2.0V to 6.0V. Enable Inputs: 3 inputs ((E1, E2, E3)) for parallel expansion to 1-of-32 decoding. Speed: High-speed CMOS performance (typically 41ns propagation delay at 2V). Operating Temperature: -40 to +125. Package: 16-pin SOIC (Small Outline Integrated Circuit). Logic Family: 74HC.
View Details
74HC138D Nxperia
The STM32F030C8T6 is a high-performance 32-bit ARM® Cortex®-M0 microcontroller from STMicroelectronics. Operating at 48 MHz, it features 64 Kbytes of Flash memory, 8 Kbytes of SRAM, and various peripherals (ADC, timers, USART, SPI, I2C) in a 48-pin LQFP package. It operates between 2.4V and 3.6V, suitable for industrial and consumer applications.
View Details
STM32F030C8T6 Microcontroller
