Home Products JE-112D Goodsky relay
COD not available
Relay by Goodsky

JE-112D Goodsky relay

Share with
Share this on :

Description

Product details

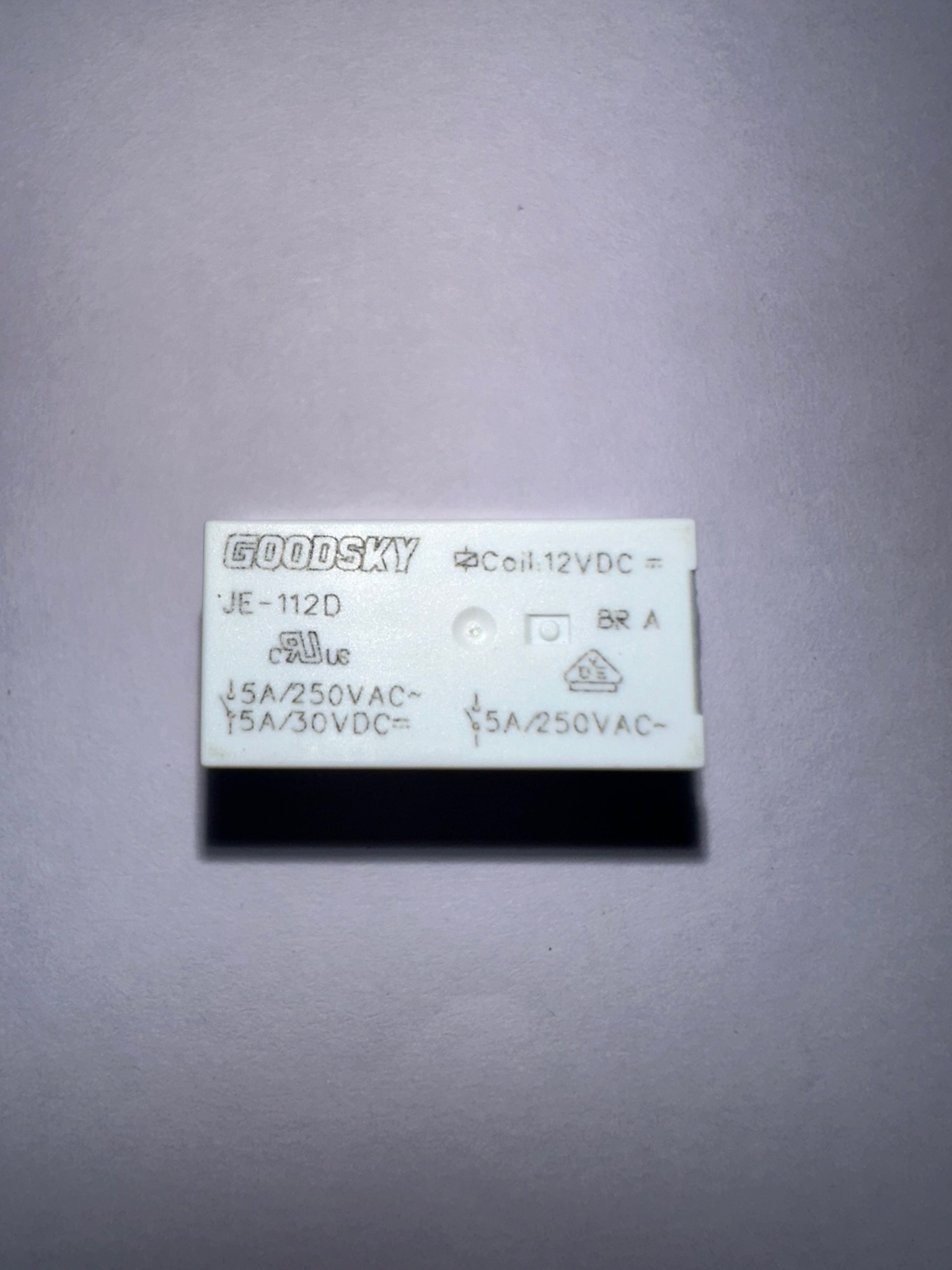

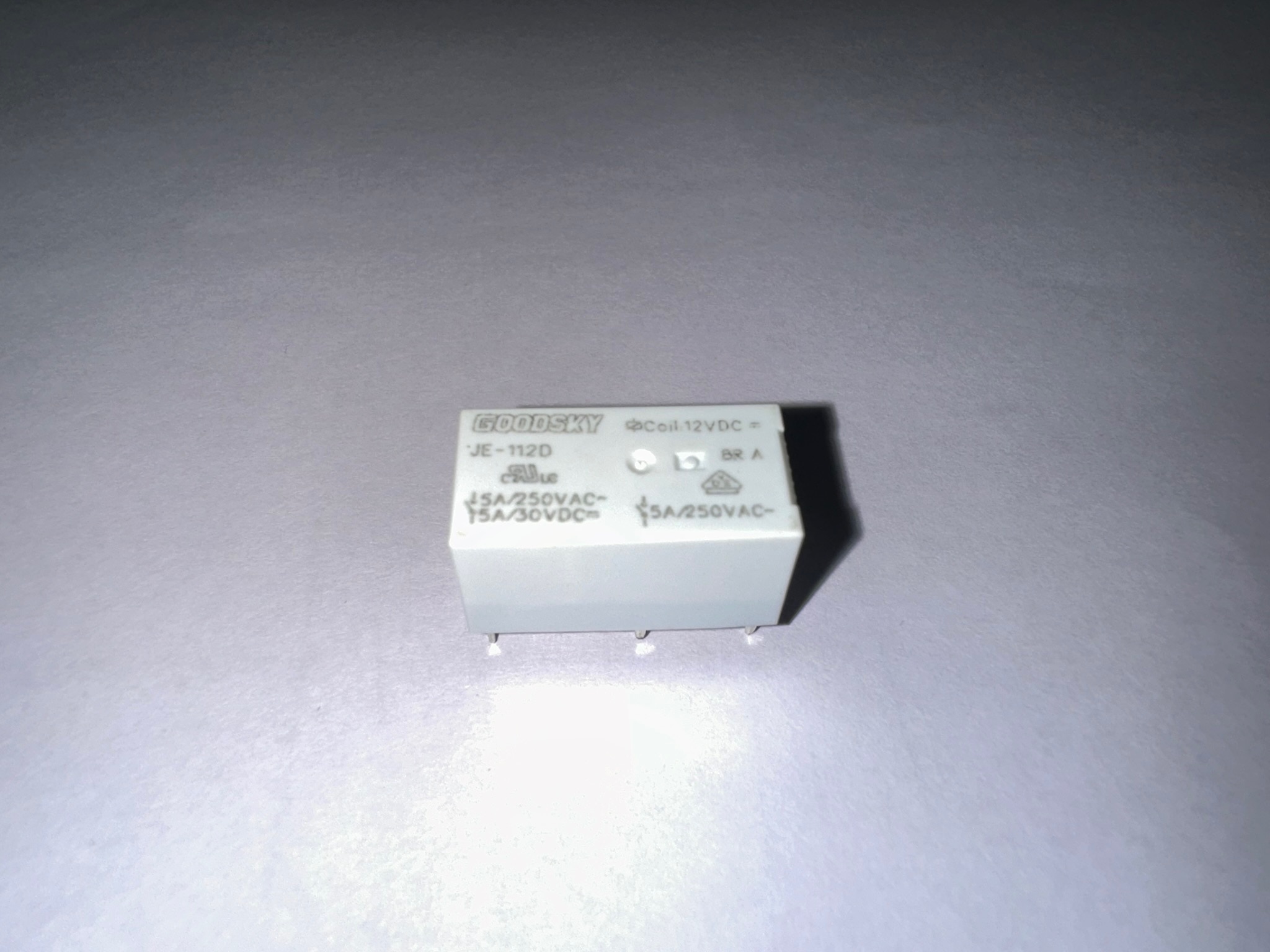

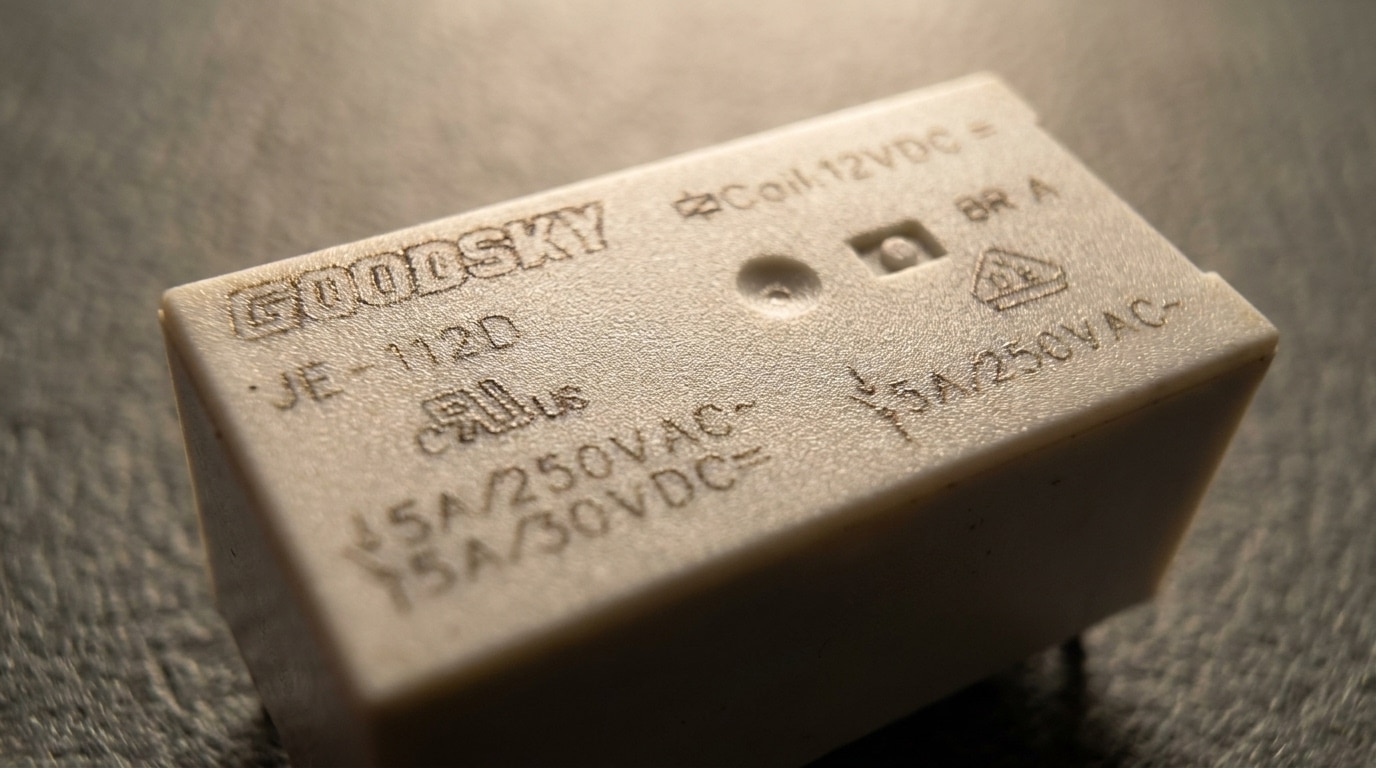

The Goodsky JE-112D is a miniature electromagnetic power relay designed for printed circuit board (PCB) mounting. It operates on a 12V DC coil voltage and can safely switch currents up to 5A. Because of its low profile and low power consumption, it is widely used in home appliances, automation, and smart home systems. Key Specifications Details Contact Configuration SPDT (Single Pole Double Throw) / 1 Form C Coil Voltage 12V DC Coil Resistance 720 Ω Power Consumption 200 mW (highly sensitive) Max Switching Current 5 A Max Switching Voltage 250V AC / 30V DC Dimensions 20 mm x 10 mm x 10.5 mm

  • Filter tags

Other Components

Related Components

The OEN 530-1A-12T0 is a 4-pin, heavy-duty 12V DC relay used primarily for high-current automotive and industrial applications. It features a Single-Pole Single-Throw (SPST) normally open configuration and is built to handle heavy electrical loads like A/C compressors, radiator cooling fans, and starter motors. Key Specifications Part Number: 530-1A-12T0 (manufactured by O/E/N India) Coil Voltage: 12 VDC (Nominal) Contact Rating: Heavy duty; typically handles 30 A to 40 A(depending on the exact variant and load) Number of Pins: 4-pin configuration Terminal Type: 6.3 mm flat terminals for standard automotive couplers
View Details
530-1A-12TO OEN Relay
The O/E/N 87D-024-4C-LT is a 24V DC, 4-pole changeover (4C/O) miniature industrial “ice cube” relay designed for automation, panels, and instrumentation. It features a LED indicator (L) and a test button (T), typically rated for 6A, designed for DIN rail mounting. Key Specifications & Features: Model/Series: O/E/N 87 Series (87D-024-4C-LT) Coil Voltage: (24V DC) Contact Configuration: 4 Changeover (4C/O or 4PDT) Contact Rating: Typically (6A) (some variants 5A-6A) Features: LED indicator, Lockable Test Button Mounting: Plug-in (panel mounting via socket) Application: Industrial automation, PLCs, Elevators
View Details
87D-024-4C-LT OEN Relay
The O/E/N 531-1A-12D0 is a 2A 531-1A-12DO OEN Relay (or 531-1A-12D0) is a 12V DC, heavy-duty power relay designed for high-current applications, such as automotive, cooling fans, and motor control. It typically features a 4-pin, 1 Form A (Normally Open) configuration with contact ratings often supporting high continuous currents (up to 40A-50A). Key Specifications & Features:Manufacturer: O/E/N India Coil Voltage: 12V DC Contact Arrangement: 1 Form A (NO - Normally Open) Current Rating: High-capacity, usually 40A to 70A (40A/70A common) Terminals: 6.3mm standard flat terminalsPins: 4 Legs Applications: Ideal for automobile electronics, industrial controls, motor control, and cooling fans.
View Details
531-1A-12DO OEN Relay
